Product Feature:
- Adopts originated domestic streamline arc design, the outer is made of cold rolled steel plate, the surface is static lacquered;
- Temperature control system adopts microcomputer single chip technology, with the functions of temperature control, timing and over-temperature alarm;
- Double screens of high light nixie tube display, the value displayed well, predominant performance, set and adjust parameters by touch type buttons;
- The interior chamber is made of stainless steel material, the design of corners semicircular is easy to clean;
- The tightness of door can be adjusted by user optionally, the silicone rubber door seal whole shaped, ensure the high vacuum degreed in chamber;
- The chamber is quadrate to maximize the volume, the door adopts steel bulletproof double glass which is easy for observation.
- Pressure measurement and display
"Fuji"brand pressure transmitters, digital pressure gauge
- Vacuum pump
Germany imported Leybold Oerlikon Leybold SV25B, pumping speed of about 7L / S
- Condenser (with refrigeration compressor): condensing temperature can be as low as 5 degrees, effectively filtering out the water vapor inside the chamber and organic solvents (I invented the patented technology, cost far beyond the industry's equivalent product).
Vacuum automatic control functions:
Vacuum drying oven with digital control of analog engineering vacuum, "manual control" has become history. You also think that today in the 21st century, manual lever-operated valve can precisely control the vacuum it? Vacuum drying oven with digital control of analog engineering vacuum, by a solenoid valve controlled by automatic digital vacuum, to provide you with more accurate and efficient vacuum control. Through the panel, vacuum to 105 Pa from 0Pa adjustable, adjustable precision 1Pa. Sensor resistance silicon pressure sensor, thus ensuring a stable pressure, free from the impact of air to pass the vacuum pressure and stable controller LED display. With the corresponding high-power vacuum pump, vacuum box vacuum degree can reach 10Pa minimum the following military level.
Technical Feature:
Model |
HSNZK-6020 |
HSNZK-6030 |
HSNZK-6050 |
HSNZK-6090 |
HSNZK-6210 |
HSNZK-6250 |
HSNZK-6500 |
Power supply |
220V ,50Hz |
380V ,50Hz |
Temp. range |
RT+10°C~250°C |
Temp. fluctuation |
±0.5°C |
Power consumption |
900W |
1200W |
1800W |
3000W |
4200W |
4600W |
8000W |
Vacuum degree |
133PA |
Interior Dimension (mm) |
300×300×275 |
320×320×300 |
415×345×370 |
450×450×450 |
560×590×640 |
700×600×600 |
630×810×845 |
Overall Dimension (mm) |
580×450×1150 |
630×510×1160 |
720×525×1235 |
615×590×1470 |
720×820×1750 |
1050×760×1610 |
790×1030×1850 |
Shelves |
1 |
1 |
2 |
2 |
3 |
3 |
4 |
|
|
|
|
|
|
|
|
|

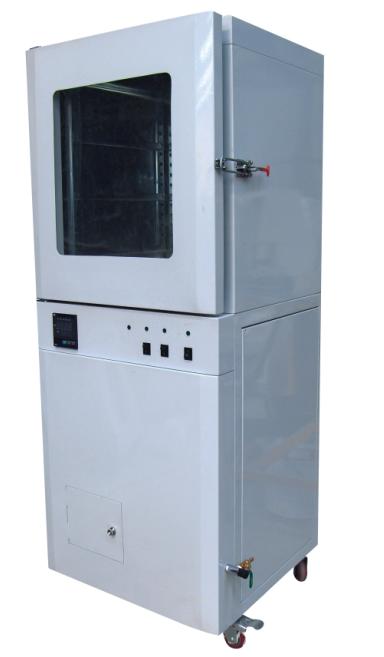

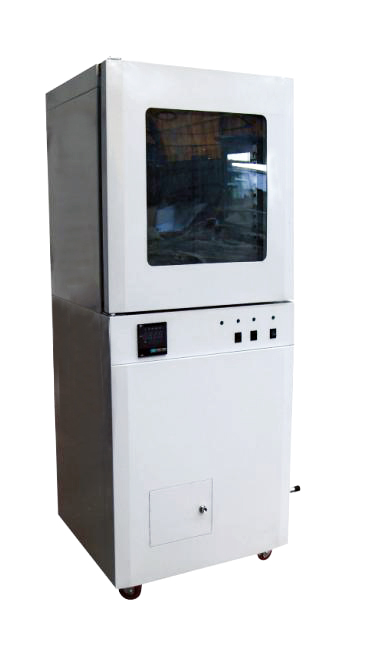

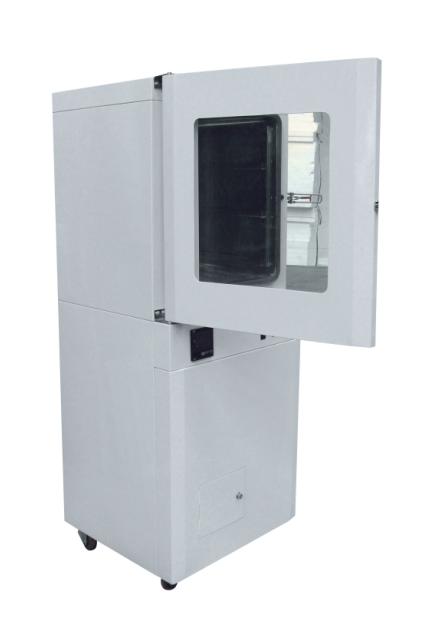

Note: This section is vertical vacuum oven, the top is a studio, the bottom is a vacuum pump kit. Standard configuration for rotary vane vacuum pumps. If the vacuum reached 100Pa level, should be equipped with high-power vacuum pump.
Vacuum drying oven accessories:
- Programmable LCD temperature controller
- Inert gas valve
- Water filters
|
